02-Nov-2022 - Helmholtz-Zentrum Berlin für Materialien und Energie GmbH

Tandem solar cells with perovskite: nanostructures help in many ways

Customised nanotextures can help to improve perowskite semiconductor materials on diverse levels

By the end of 2021, teams at HZB had presented perovskite silicon tandem solar cells with an efficiency close to 30 percent. This value was a world record for eight months, a long time for this hotly contested field of research. In the journal Nature Nanotechnology, the scientists describe how they achieved this record value with nanooptical structuring and reflective coatings.

Tandem solar cells made of perovskite and silicon enable significantly higher efficiencies than silicon solar cells alone. Tandem cells from HZB have already achieved several world records. Most recently, in November 2021, HZB research teams achieved a certified efficiency of 29.8 % with a tandem cell made of perovskite and silicon. This was an absolute world record that stood unbeaten at the top for eight months. It was not until the summer of 2022 that a Swiss team at EPFL succeeded in surpassing this value.

Joined forces

Three HZB teams had worked closely together for the record-breaking tandem cell. Now they present the details in Nature Nanotechnology. The journal also invited them to write a research briefing, in which they summarise their work and give an outlook on future developments.

Textures improves the performance

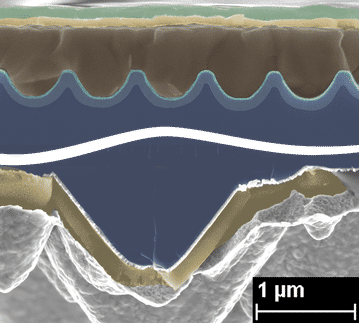

"Our competences complement each other very well," says Prof. Dr. Christiane Becker, who developed the world record cell with the team led by Dr. Bernd Stannowski (silicon bottom cell) and Prof. Dr. Steve Albrecht (perovskite top cell). Becker's team introduced a nanooptical structure into the tandem cell: a gently corrugated nanotexture on the silicon surface. "Most surprising, this texture brings several advantages at once: it reduces reflection losses and ensures a more regular perovskite film formation," says Becker. In addition, a dielectric buffer layer on the back of the silicon reduces parasitic absorption at near-infrared wavelengths.

As a conclusion, the researchers hold: customised nanotextures can help to improve perowskite semiconductor materials on diverse levels. These results are not only valuable for tandem solar cells made of perovskite and silicon, but also for perovskite-based light-emitting diodes.
